Intoduction

Harbor is an open source registry that bolsters artifact security with advanced policies and role-based access control. It performs comprehensive vulnerability scans on images and verifies their authenticity through digital signatures. As a CNCF Graduated project, Harbor offers strong compliance, high performance, and seamless integration, allowing for consistent and secure management of artifacts across cloud-native platforms like Kubernetes and Docker.

Harbor Features

Cloud Native Registry

Harbor supports both container images and Helm charts, making it an ideal registry for cloud-native environments, including container runtimes and orchestration platforms.

Role-Based Access Control

Harbor employs role-based access control (RBAC), allowing users to access different repositories through ‘projects.’ Permissions can be customized for images or Helm charts within a project.

Policy-Based Replication

Replication: Images and charts can be replicated (synchronized) across multiple registry instances based on policies using filters (repository, tag, and label).
Automatic Retries: Harbor automatically retries replication in case of errors.
Use Cases: This feature supports load balancing, high availability, and multi-datacenter deployments in hybrid and multi-cloud scenarios.

Vulnerability Scanning

Harbor regularly scans images for vulnerabilities and enforces policies to prevent the deployment of vulnerable images.

LDAP/AD Support

Harbor integrates with enterprise LDAP/AD for user authentication and management. LDAP groups can be imported into Harbor and assigned permissions to specific projects.

OIDC Support

Harbor supports OpenID Connect (OIDC) for verifying user identities through external authorization servers or identity providers. Single sign-on (SSO) can be enabled for accessing the Harbor portal.

Image Deletion & Garbage Collection

System administrators can run garbage collection jobs to delete unreferenced images, dangling manifests, and blobs, freeing up space periodically.

Notary

Harbor supports signing container images using Docker Content Trust (leveraging Notary) to guarantee authenticity and provenance. Policies can also be set to prevent the deployment of unsigned images.

Graphical User Portal

Users can easily browse, search repositories, and manage projects through Harbor’s intuitive graphical user interface.

Auditing

All repository operations are tracked and logged for auditing purposes.

RESTful API

APIs: RESTful APIs are available for administrative tasks and integration with external systems.
Swagger UI: An embedded Swagger UI is provided for exploring and testing the API.

Easy Deployment

Harbor can be deployed using Docker Compose, Helm Charts, or the recently added Harbor Operator.

Official Documentations

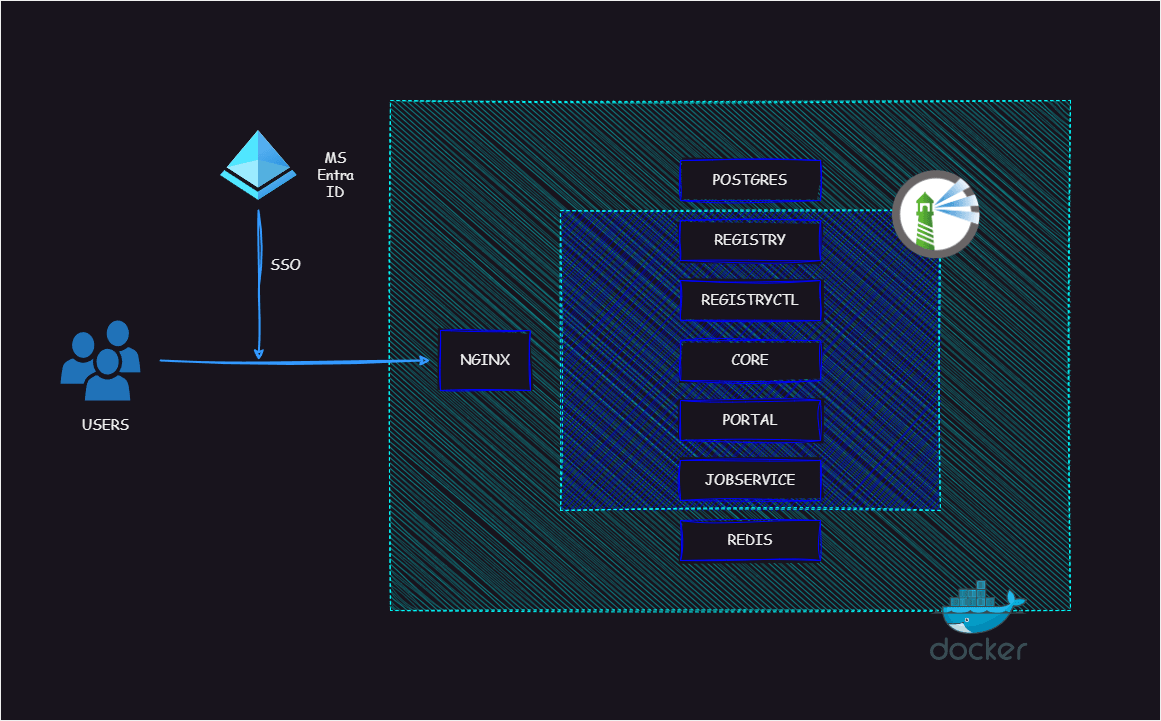

Deploy Infrastructure

In the article we will use Docker compose as platform for infrastructure. As base we use bitnami images. Additionaly, you need a Microsoft EntraID tenenant for OAuth authentication.

extadmin.space demo files you can find here

Installation Harbor server

Create project folder and copy demo files form repository
Ensure that variables in *.env files are defined correctly, with particular attention to ensuring that passwords are identical wherever they appear.
Pay special attention to CORE_KEY= param in core.env, it must be a 16-character-long phrase.

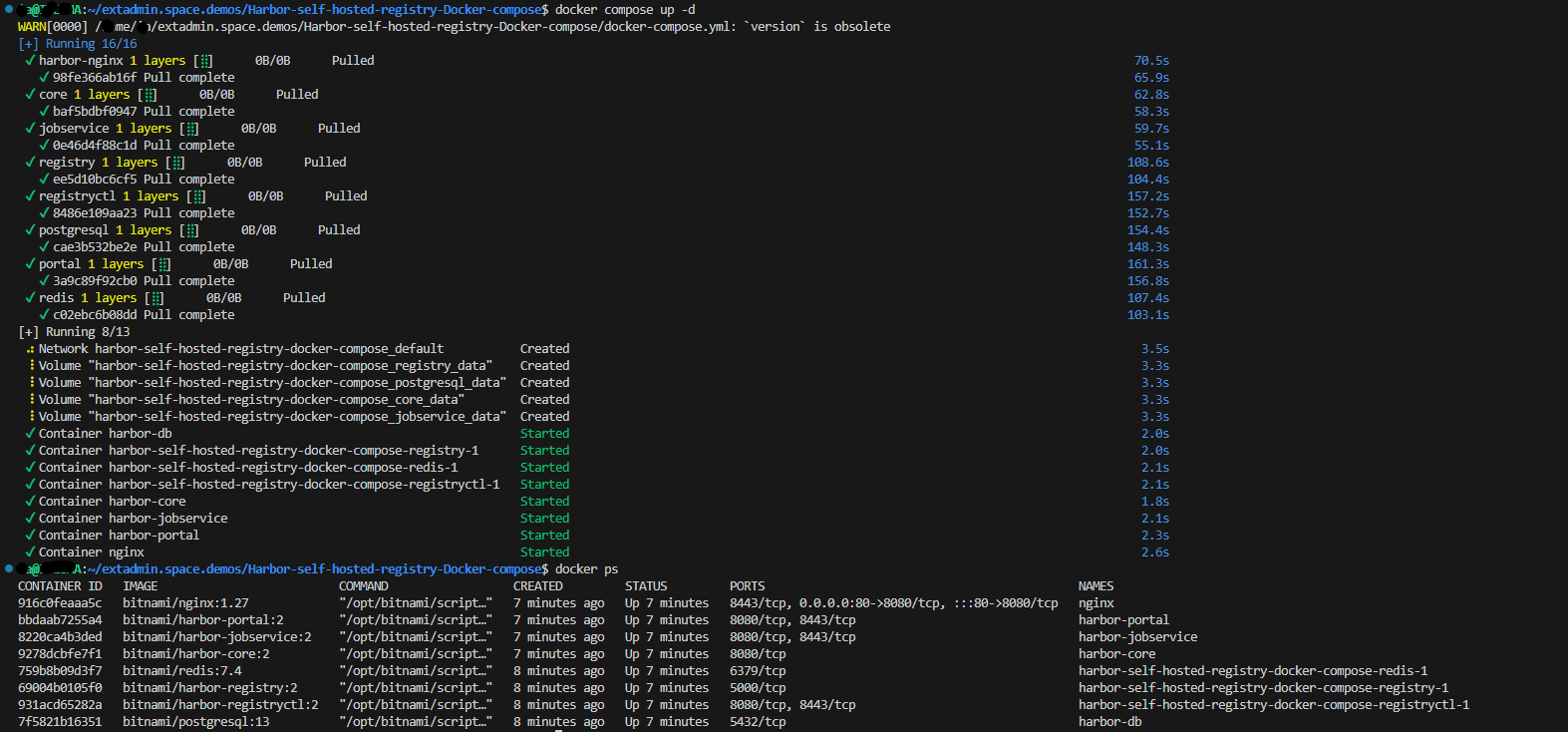

Execute docker compose up -d to deploy Harbor server and surrondings

docker-compose.core.yaml

# Copyright Broadcom, Inc. All Rights Reserved.
# SPDX-License-Identifier: APACHE-2.0

version: '2'

services:
  registry:
    image: docker.io/bitnami/harbor-registry:2
    env_file:
      - ./env/registry.env
    volumes:
      - registry_data:/storage
      - ./config/registry/:/etc/registry/:ro
  registryctl:
    image: docker.io/bitnami/harbor-registryctl:2
    env_file:
      - ./env/registryctl.env
    volumes:
      - registry_data:/storage
      - ./config/registry/:/etc/registry/:ro
      - ./config/registryctl/config.yml:/etc/registryctl/config.yml:ro
  postgresql:
    image: docker.io/bitnami/postgresql:13
    container_name: harbor-db
    env_file:
      - ./env/postgresql.env
    volumes:
      - postgresql_data:/bitnami/postgresql
  core:
    image: docker.io/bitnami/harbor-core:2
    container_name: harbor-core
    depends_on:
      - registry
    env_file:
      - ./env/core.env
    volumes:
      - core_data:/data
      - ./config/core/app.conf:/etc/core/app.conf:ro
      - ./config/core/private_key.pem:/etc/core/private_key.pem:ro
  portal:
    image: docker.io/bitnami/harbor-portal:2
    container_name: harbor-portal
    depends_on:
      - core
  jobservice:
    image: docker.io/bitnami/harbor-jobservice:2
    container_name: harbor-jobservice
    depends_on:
      - redis
      - core
    env_file:
      - ./env/jobservice.env
    volumes:
      - jobservice_data:/var/log/jobs
      - ./config/jobservice/config.yml:/etc/jobservice/config.yml:ro
  redis:
    image: docker.io/bitnami/redis:7.4
    env_file:
      - ./env/redis.env
  harbor-nginx:
    image: docker.io/bitnami/nginx:1.27
    container_name: nginx
    volumes:
      - ./config/proxy/nginx.conf:/opt/bitnami/nginx/conf/nginx.conf:ro
    ports:
      - '80:8080'
    depends_on:
      - postgresql
      - registry
      - core
      - portal
volumes:
  registry_data:
    driver: local
  core_data:
    driver: local
  jobservice_data:
    driver: local
  postgresql_data:
    driver: local
networks:
  harbor_net:

Attention! It will expose 80/TCP port, if you need use different ports you have to change their in docker-compose.yaml. Moreover, if you want to have extrnal access to your self-hosted harbor server, configure your firewall.

harbor

Set up harbor

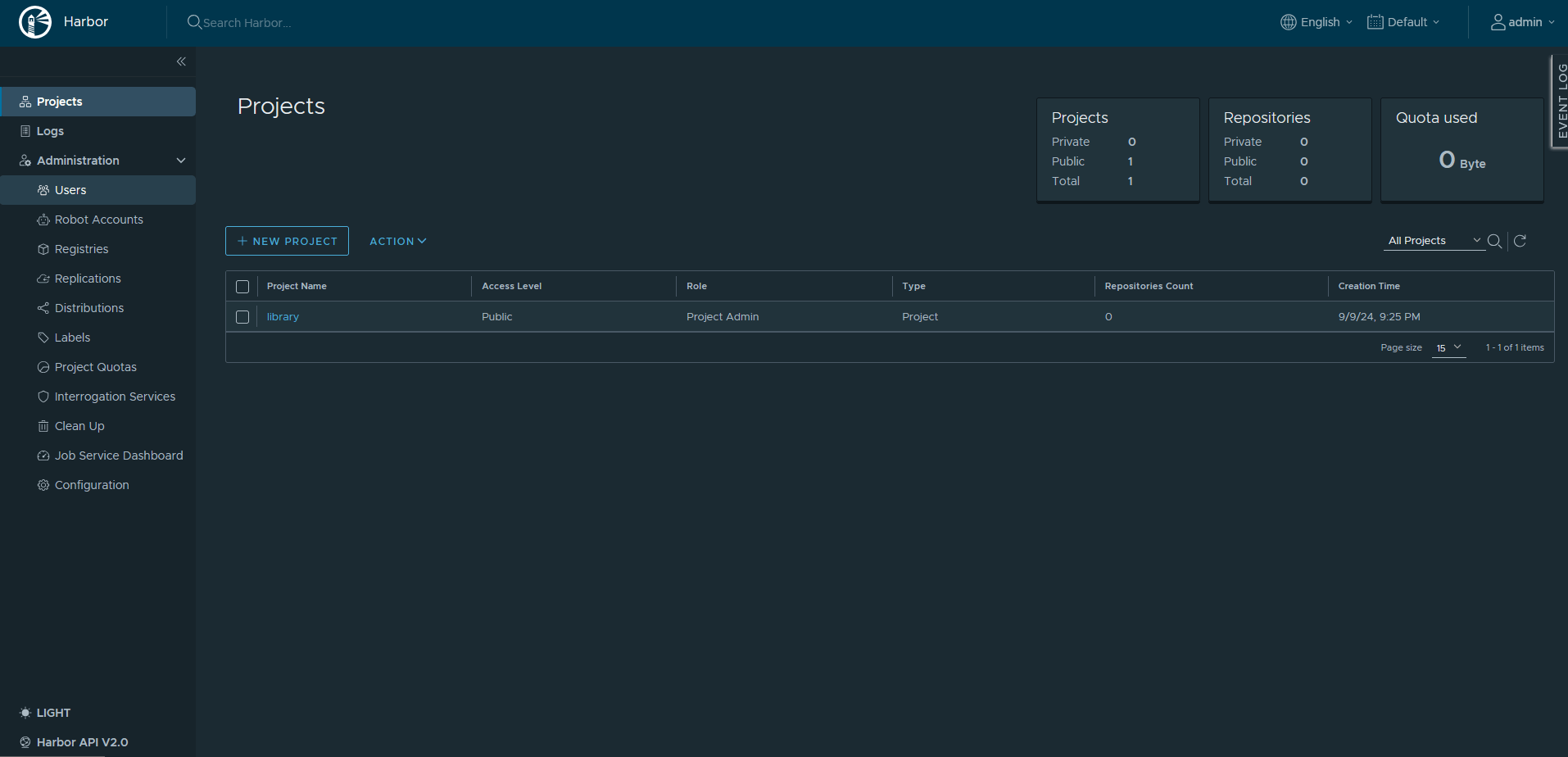

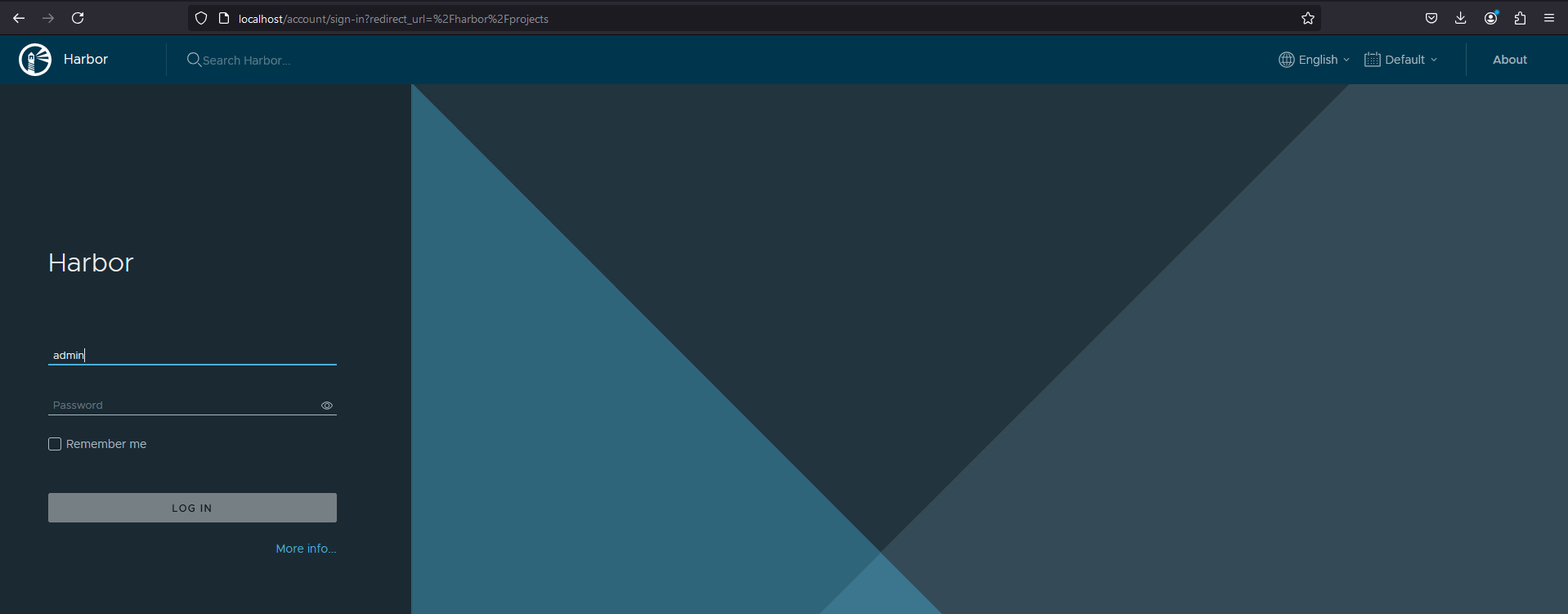

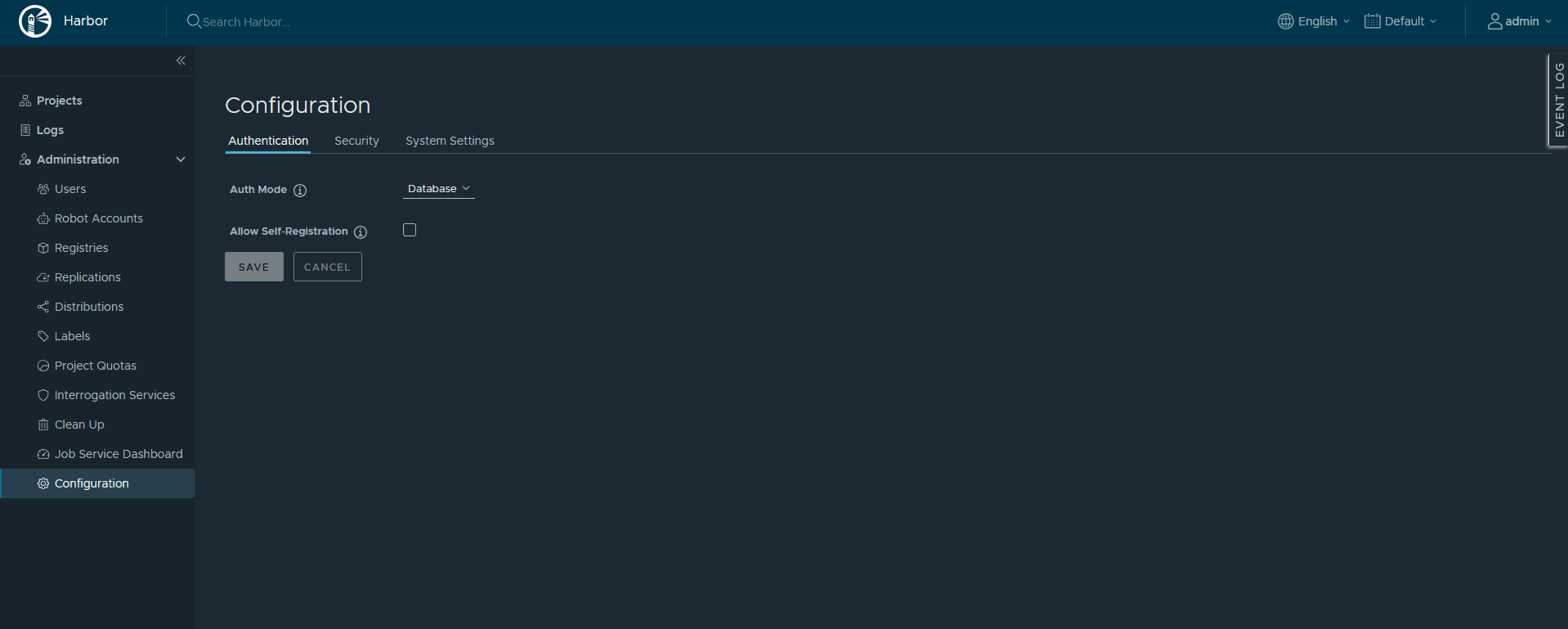

Firstly follow to the harbor server and sign-in with admin account, use bitnami as basic password.

harbor

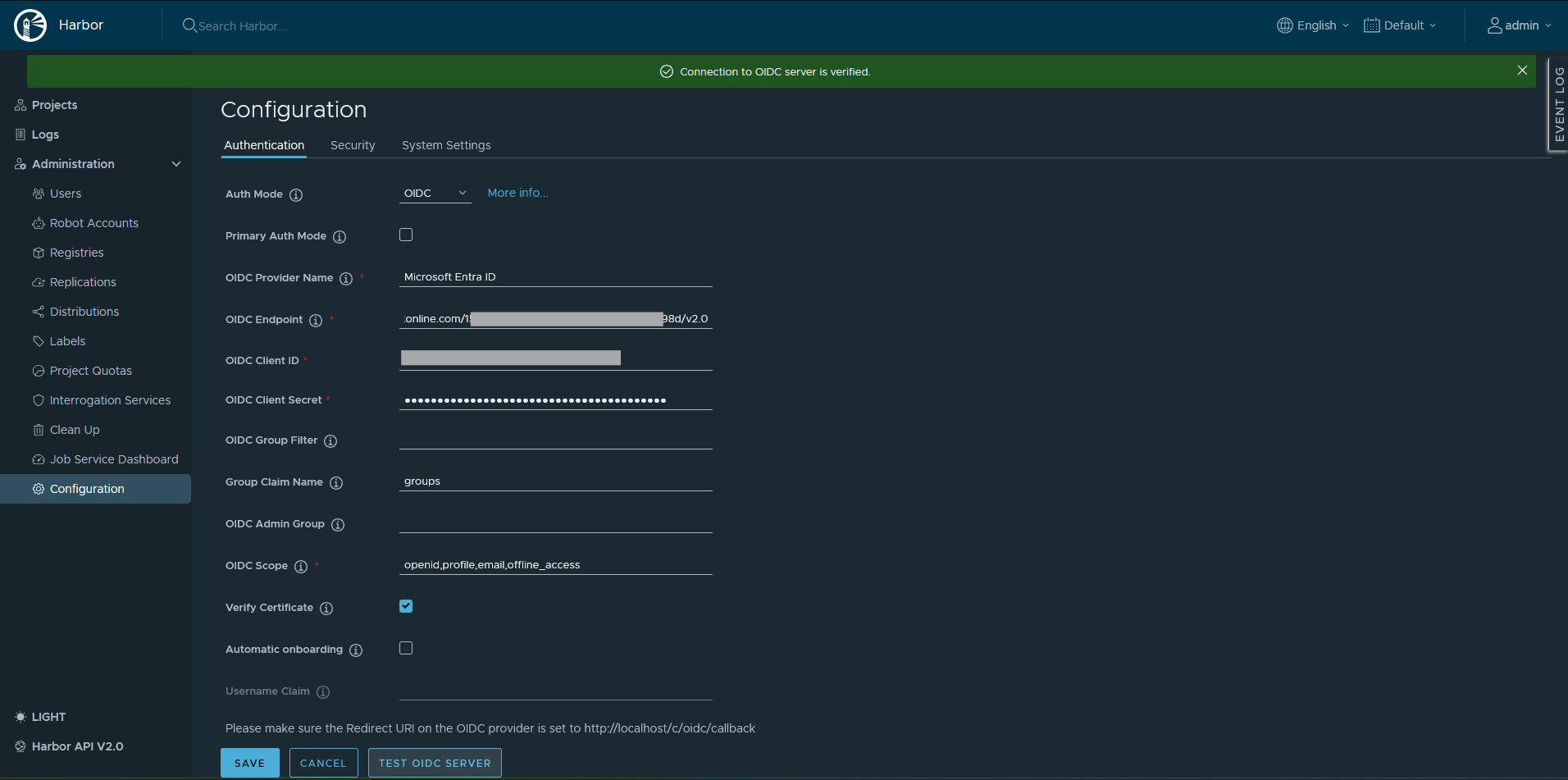

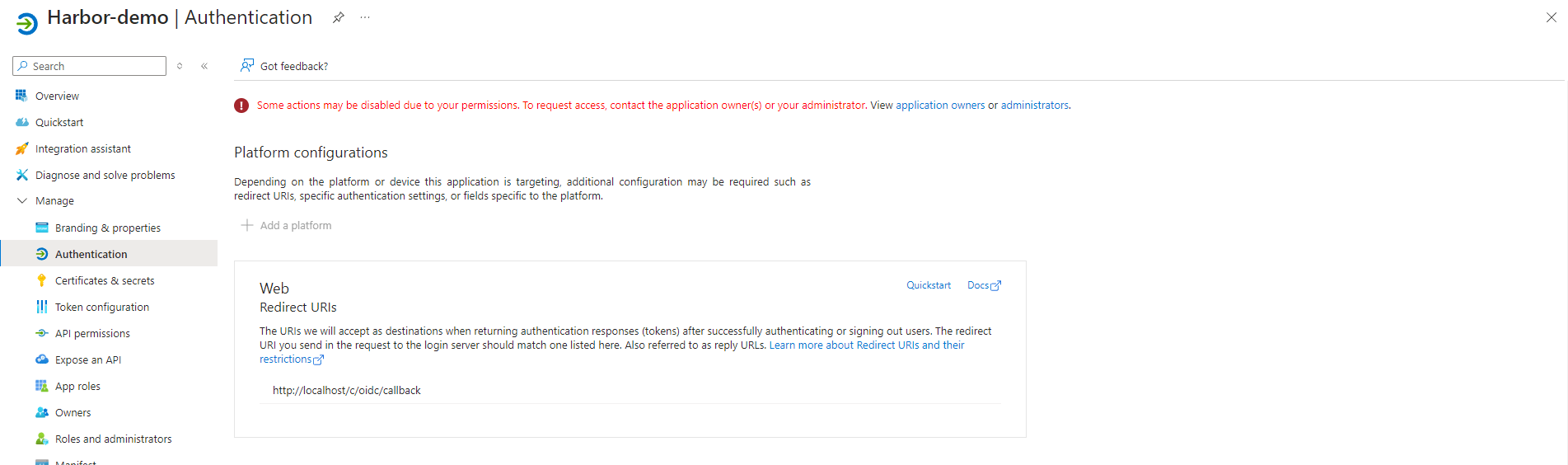

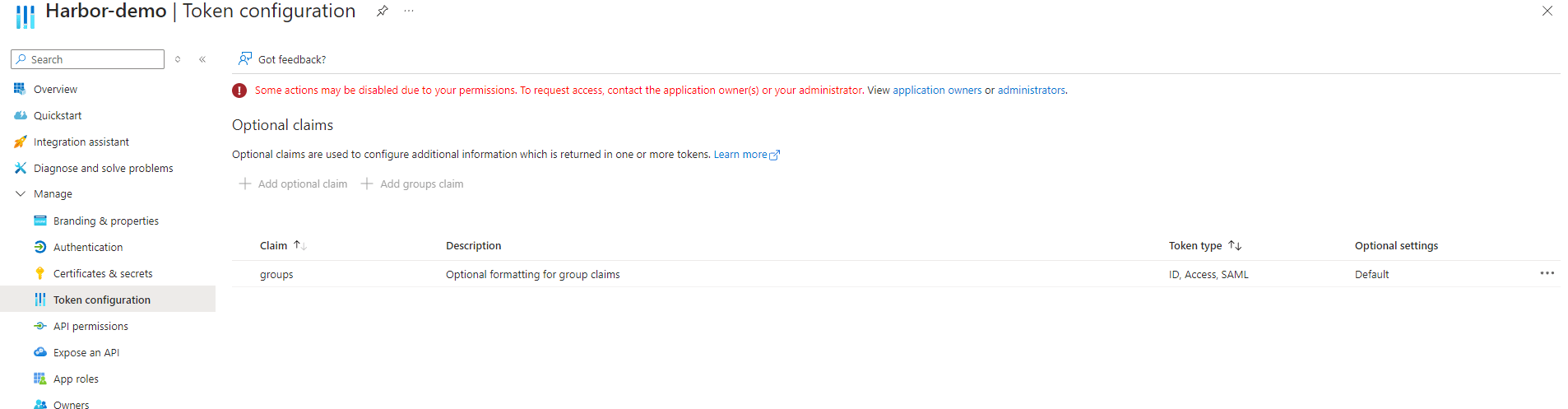

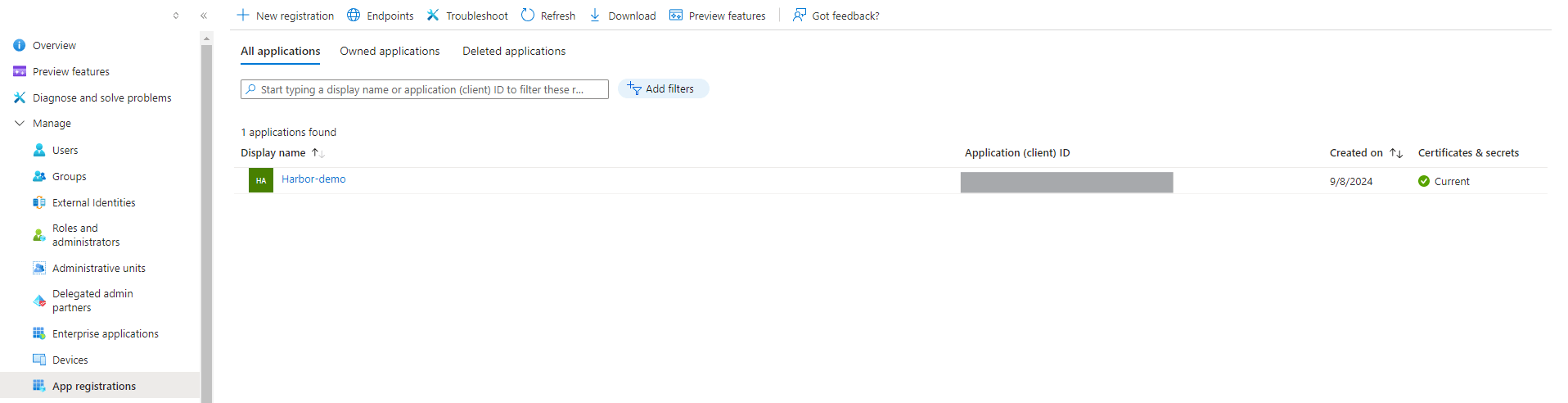

Configure OAuth Authentication

In addition to internal authetication, harbor support different kinds of external as LDAP or OIDC, etc. In the current article we set up OAuth2 OpenID Connect + Microsoft EntraID. So you must have Microsoft EntraID tenant as least Free license. Using current method you do not need any external domain or a public IP address.
